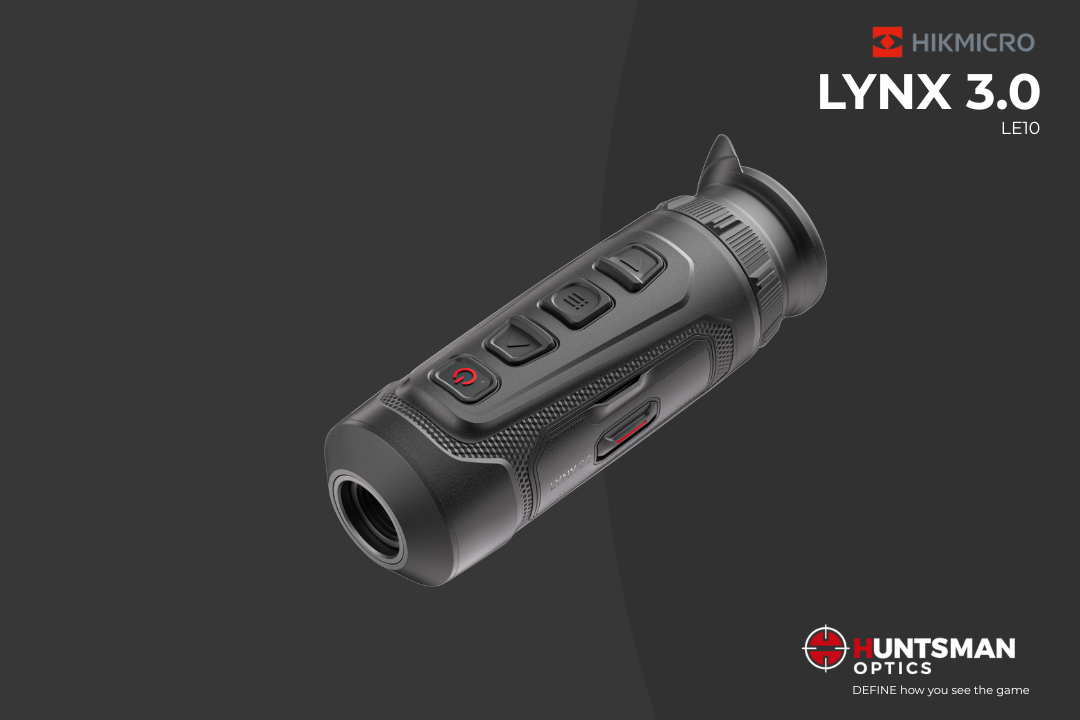

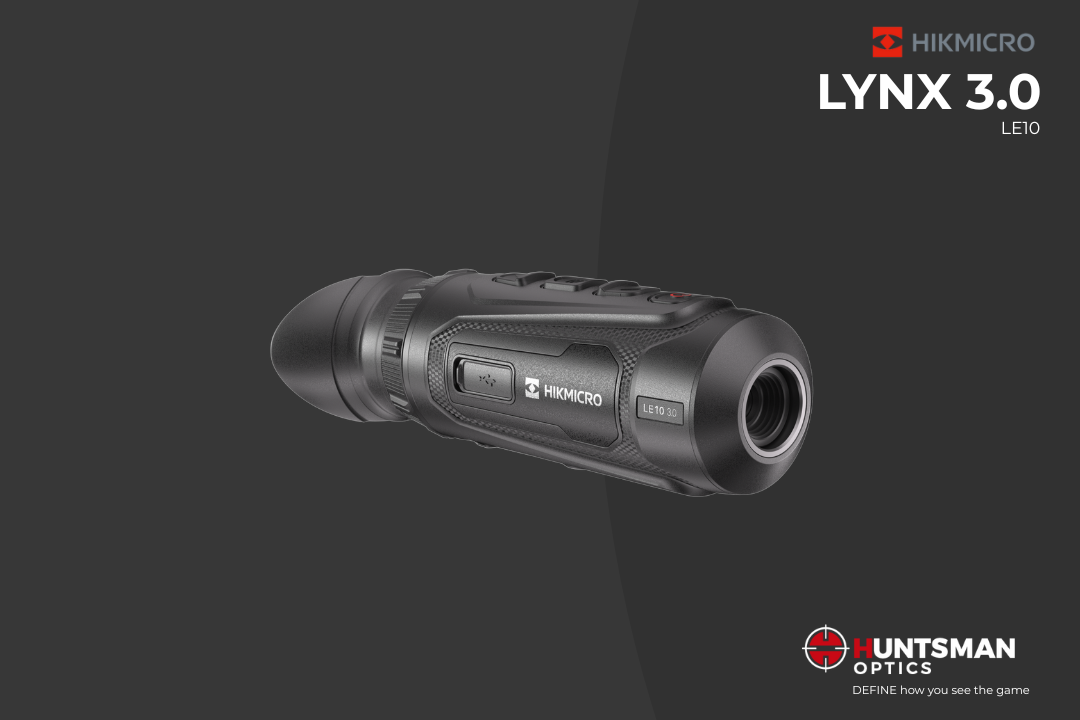

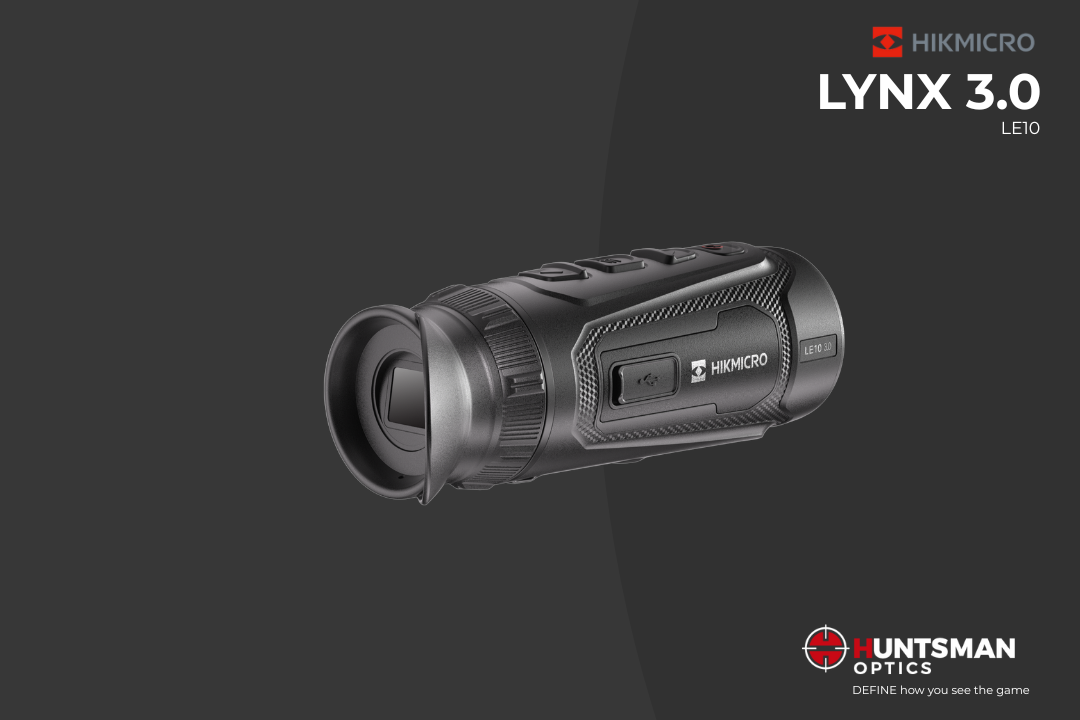

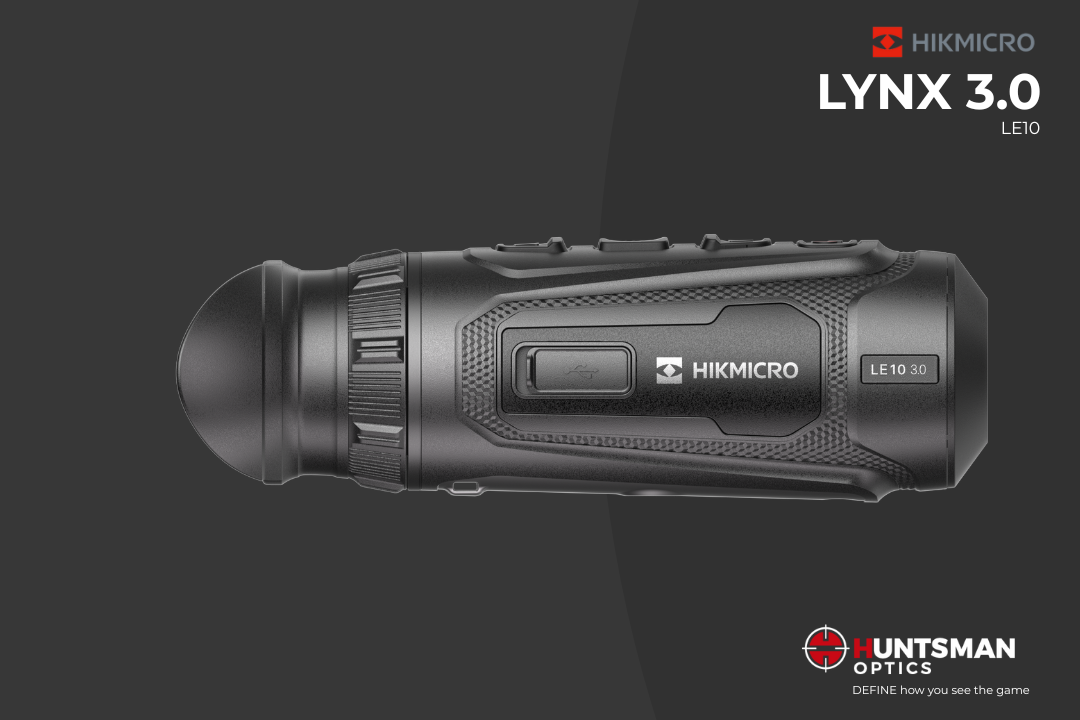

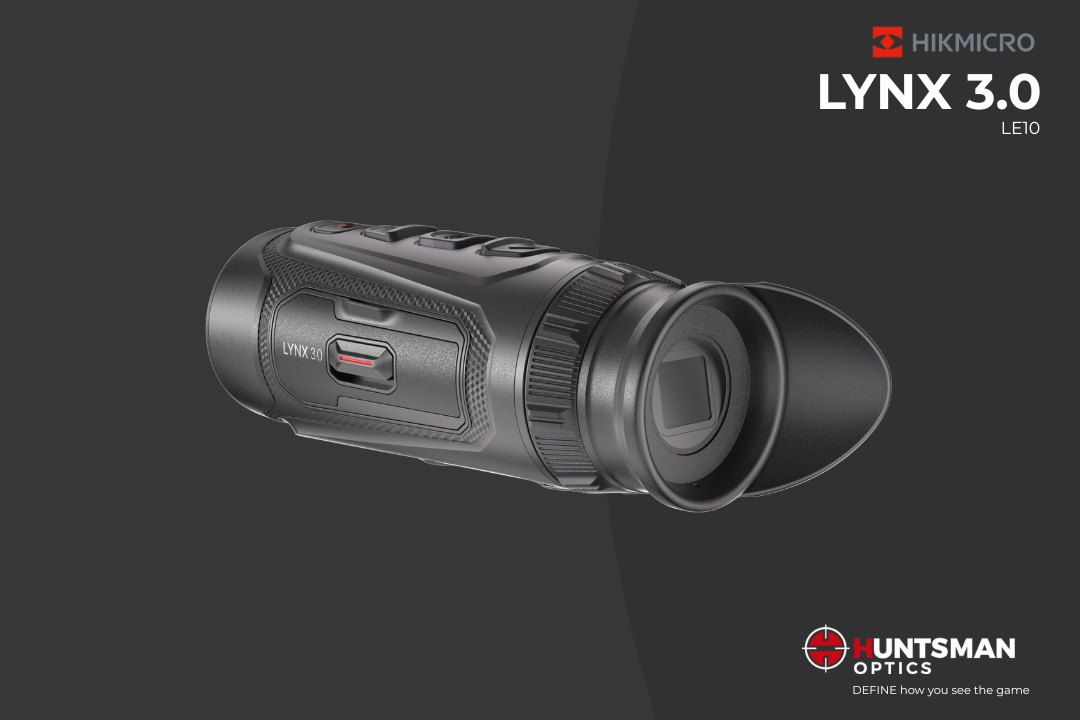

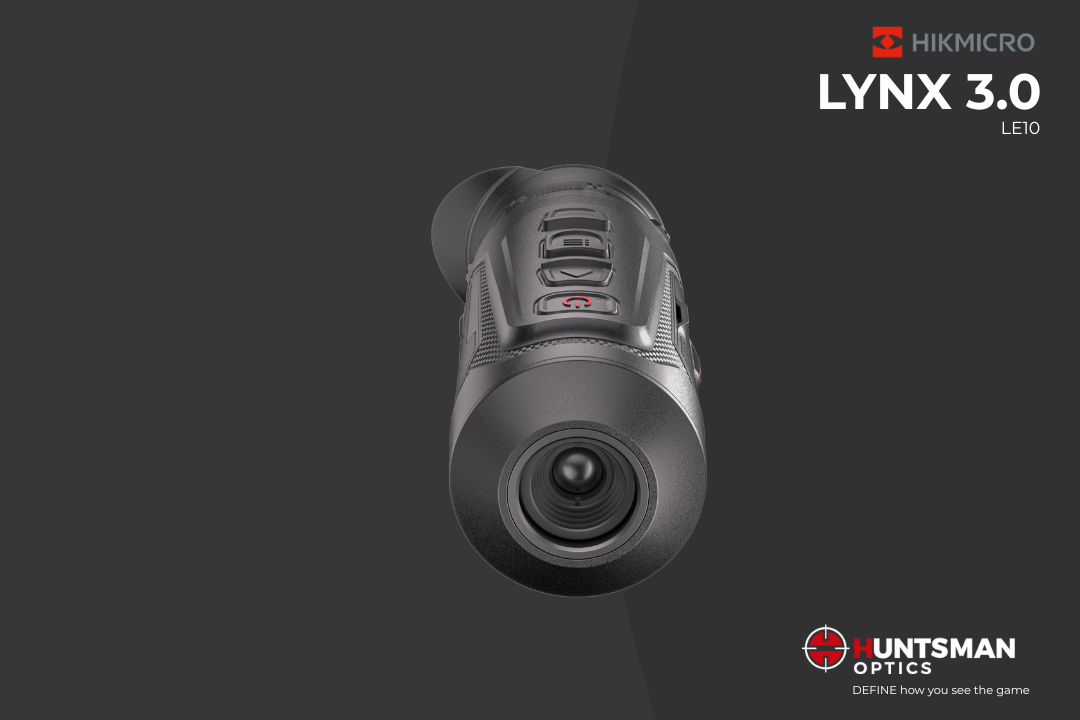

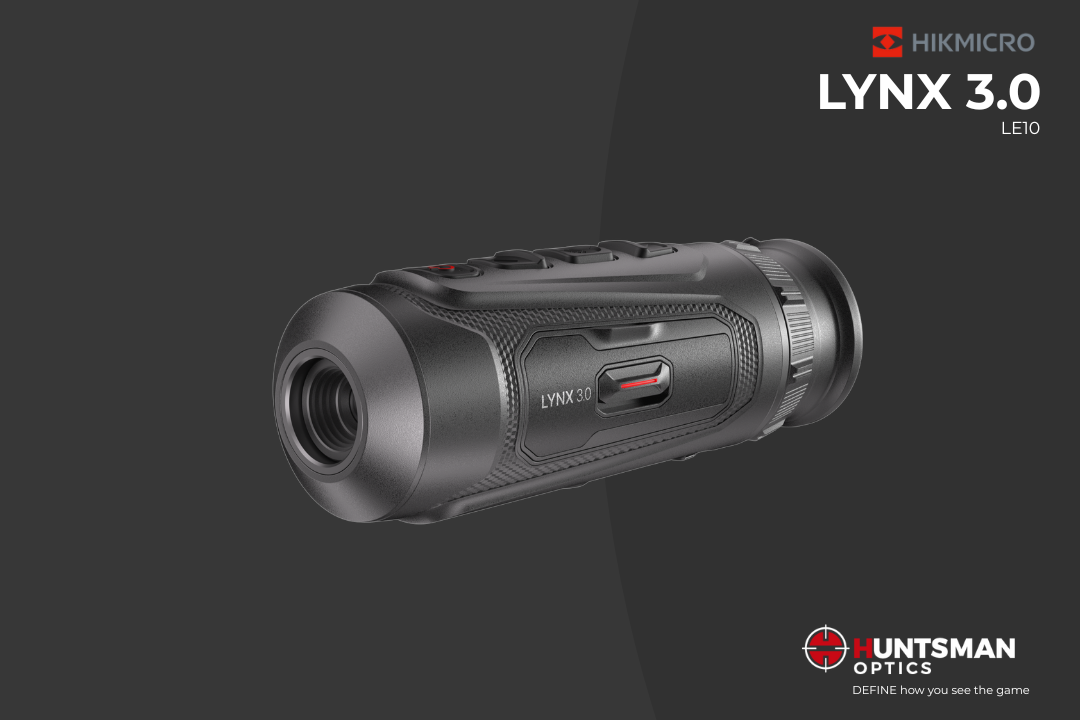

LYNX LE10 3.0 10mm Thermal Monocular
The HIKMICRO LYNX 3.0 LE10 is purpose-built for professionals and enthusiasts who demand reliable, compact, and high-value thermal imaging for close-range observation. Equipped with a 256 × 192 thermal detector and a 9.7 mm F1.0 lens, it offers a 1.4× base magnification and a wide 18° field of view, providing crisp and detailed thermal images across a detection range of up to 500 metres. Whether used for wildlife observation, property patrols, or pest-control operations, the LE10 delivers dependable performance in any lighting or weather condition.
Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, this latest-generation LYNX model ensures exceptional image sharpness, contrast, and stability, even in rain, fog, or heavy vegetation. The advanced HIKMICRO Shutterless Image System (HSIS) provides silent and seamless image correction, eliminating mechanical calibration noise for uninterrupted viewing. These technologies combine to create smooth, lifelike thermal visuals ideal for surveillance, search and rescue, and outdoor fieldwork where silent operation and detail recognition are critical.
Built for portability and endurance, the LE10 features a replaceable 18650 battery that delivers reliable runtime even in extreme environments. Compact, lightweight, and ergonomically designed, it slips easily into a pocket or gear bag without compromising durability. Rated IP67 for dust and water resistance, the LYNX 3.0 LE10 is a professional-grade thermal monocular offering an exceptional balance of efficiency, reliability, and value for those who need trusted performance in every mission or field application.
HIKMICRO LYNX LE10 3.0 Specifications
-
Image Sensor: VOx Uncooled Focal Plane Arrays
-
Max. Resolution: 256 × 192
-
Frame Rate: 50 Hz
-
Pixel Interval: 12 μm
-
Response Waveband: 8 μm to 14 μm
-
NETD: Less than 20 mK (@25°C), F#=1.0
-
Lens (Focal Length): 9.7 mm, F1.0
-
Focus Mode: Focus Free
-
Min. Focusing Distance: 3.5 m
-
Magnification: 1.4× – 11.2× (8× Digital Zoom)
-
Field of View (H × V): 18.0° × 13.6° / 31.7 m × 23.8 m @ 100 m
-
Detection Range: 500 m
-
Display: 0.39 inch, OLED/AMOLED, 1024 × 768
-
Contrast Adjustment: Yes
-
Brightness Adjustment: Yes
-
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
-
Tone Adjustment: Cold, Warm
-
Zoom Pro: Yes
-
HSIS (HIKMICRO Shutterless Image System): Yes
-
Image Pro 3.0: Yes
-
Battery Type: Replaceable and rechargeable 18650 battery
-
Runtime: ~4.5 hours (Continuous running)
-
Protection Level: IP67
-
Weight: ~291 g (with battery)
